Shandong Yongsheng Dredging Machinery Co., Ltd. yongshengdredger@machineys.com 86--13953662777
รายละเอียดสินค้า
Place of Origin: china
ชื่อแบรนด์: yongsheng
Model Number: csd600
เงื่อนไขการชําระเงินและการจัดส่ง
Minimum Order Quantity: 1
ราคา: 1450000usd/piece
Packaging Details: Container
Delivery Time: 60 work days
Payment Terms: T/T,L/C
Supply Ability: 100piece/Year
Customized: |
customized |
Condition: |
new |
Warranty: |
1 year |
Water Flow: |
6000m3/h |
Solid Capacity: |
900cbm/h |
Max.Dredging Depth 45°: |
15m |
Discharge Distance: |
2000m |
Dredger After Assembly: |
48*9.4*2.8 M Length*Width*Depth |
Dredger Structure: |
Can Be Assembly in Working Site |
Average Draught: |
1.8m |
Diameter Discharge Pipe: |
600mm/24inch |
Total Power: |
2511kw |
Main Engine: |
1715 Kw |
Auxiliary Engine Power: |
746kw |
Generator: |
50kw |
Hydraulic Cutter Powerr: |
440kw |
Customized: |
customized |
Condition: |
new |
Warranty: |
1 year |
Water Flow: |
6000m3/h |
Solid Capacity: |
900cbm/h |
Max.Dredging Depth 45°: |
15m |
Discharge Distance: |
2000m |
Dredger After Assembly: |
48*9.4*2.8 M Length*Width*Depth |
Dredger Structure: |
Can Be Assembly in Working Site |
Average Draught: |
1.8m |
Diameter Discharge Pipe: |
600mm/24inch |
Total Power: |
2511kw |
Main Engine: |
1715 Kw |
Auxiliary Engine Power: |
746kw |
Generator: |
50kw |
Hydraulic Cutter Powerr: |
440kw |

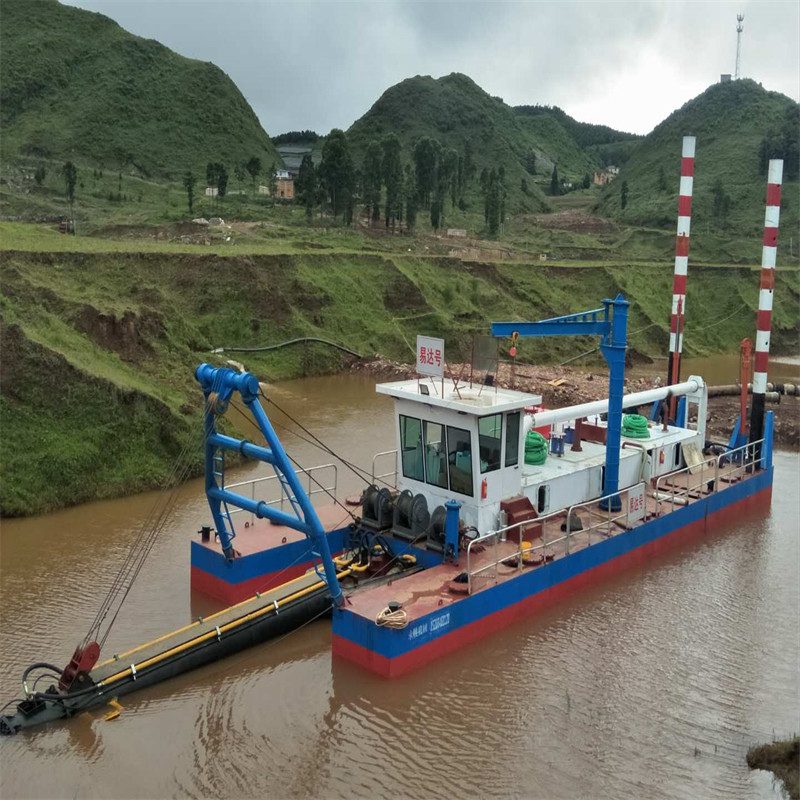

cutter suction dredger is widely used for river lake port and inside waterways etc . cutter suction
dredger can process sand mud gravel from all kinds of dredging project . cutter suction dredger
adopts good quality device to achieve the highest performance .let the customer spends the lowest
cost to Get the highest profit Configuration of Cumins diesel engine ( Otherwise can provide carter
Weichai and others diesel engine brand )Shijiazhuang slurry pump and hydraulic pump from the
America or Germany . all configurations can reach the low failure low fuel consumption high capacity
and high efficiency.
| Model list for hydraulic cutter suction dredger | |||||||
| Model | Inch |
Diameter pipe |
Water flow | Solid capacity |
Total power |
Dredging depth |
Discharge distance |
| YSCSD150 | 6 Inch | 150 mm | 260 m3/h | 30 cbm/h | 102 KW | 4m | 600 m |
| YSCSD200 | 8 Inch | 200 mm | 600 m3/h | 80 cbm/h | 213 KW | 6m | 800 m |
| YSCSD250 | 10 inch | 250 mm | 1,000 m3/h | 160 cbm/h | 367 KW | 8m | 1,100 m |
| YSCSD300 | 12 inch | 300 mm | 1,500 m3/h | 240 cbm/h | 591 KW | 10 m | 1,100 m |
| YSCSD350 | 14 inch | 350 mm | 2,400 m3/h | 360 cbm/h | 971 KW | 12m | 1,200 m |
| YSCSD400 | 16 Inch | 400 mm | 3,000 m3/h | 500 cbm/h | 1,057 KW | 14m | 1,400 m |
| YSCSD450 | 18 Inch | 450 mm | 3,500 m3/h | 700 cbm/h | 1,462 KW | 15m | 1,500 m |
| YSCSD500 | 20 Inch | 500 mm | 3,800 m3/h | 760 cbm/h | 1,648 KW | 15m | 1,600m |
| YSCSD600 | 24 Inch | 600 mm | 6,000 m3/h | 900 cbm/h | 2,511 KW | 15m | 1,800 m |
| YSCSD650 | 26 Inch | 650 mm | 7,000 m3/h | 1,400 cbm/h | 3,705 KW | Max.18m | 1,800m |
1)After sales technical support,machine installation,spare part service anticipated training for our
customers are provided by our specialist engineers and technicians.
2)Our technical service department is ready to serve and reslove your questions via online support,
phone calls or on-sit support.
3)We reckon service insight to increase the levels of challenge with our specialized technical staff.Genial
customer relations,technical facilities for intact spare parts deliverised with spare part labor warranty,affordable
spare parts and on site service are just a few examples of our professinal custoemer approach.
FAQ:
Need for reply:
1. How many cubic meter per hour for the clear water flow?
2. How many meters for the dredging depth?
3. How many meters for the discharge distance?
4. Will you use the dredger in the river,lake,sea or channel?
